Measured parameters
•Inrush current.
• Inverter efficiency.
• Voltages L1, L2, L3, N, PE (five measurement inputs) – average, minimum, maximum and instant values within the range up to 760 V, interoperability with voltage transducers.

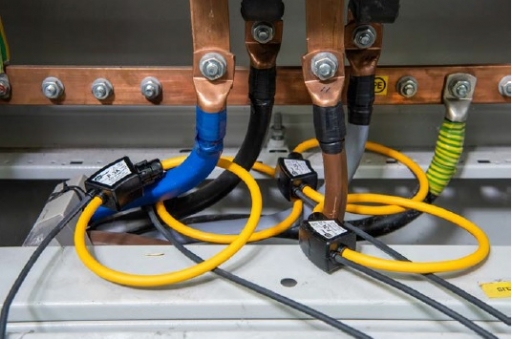

• Currents L1, L2, L3, N (four measurement inputs) – average, minimum and maximum values, current measurement within the range up to 6 kA (depending on applied current clamp), interoperability with current transducers.
• Crest factors for current CFI and voltage CFU.
• Frequency within the range of 40...70 Hz.
• Active (P), reactive (Q), distortion (D) and apparent (S) power with the type of reactive power (capacitive and inductive).
• Active (EP), reactive (EQ) and apparent (ES) energy.
• Power factor PF, cosφ, tanφ.
• Harmonics up to the 50th order of voltage and current.
• Event logging for current and voltage along with oscillograms and half-period RMS charts.
• Energy cost calculator.
• ...and much more.
• All parameters are recorded in compliance with class S according to IEC 61000-4-30 standard
